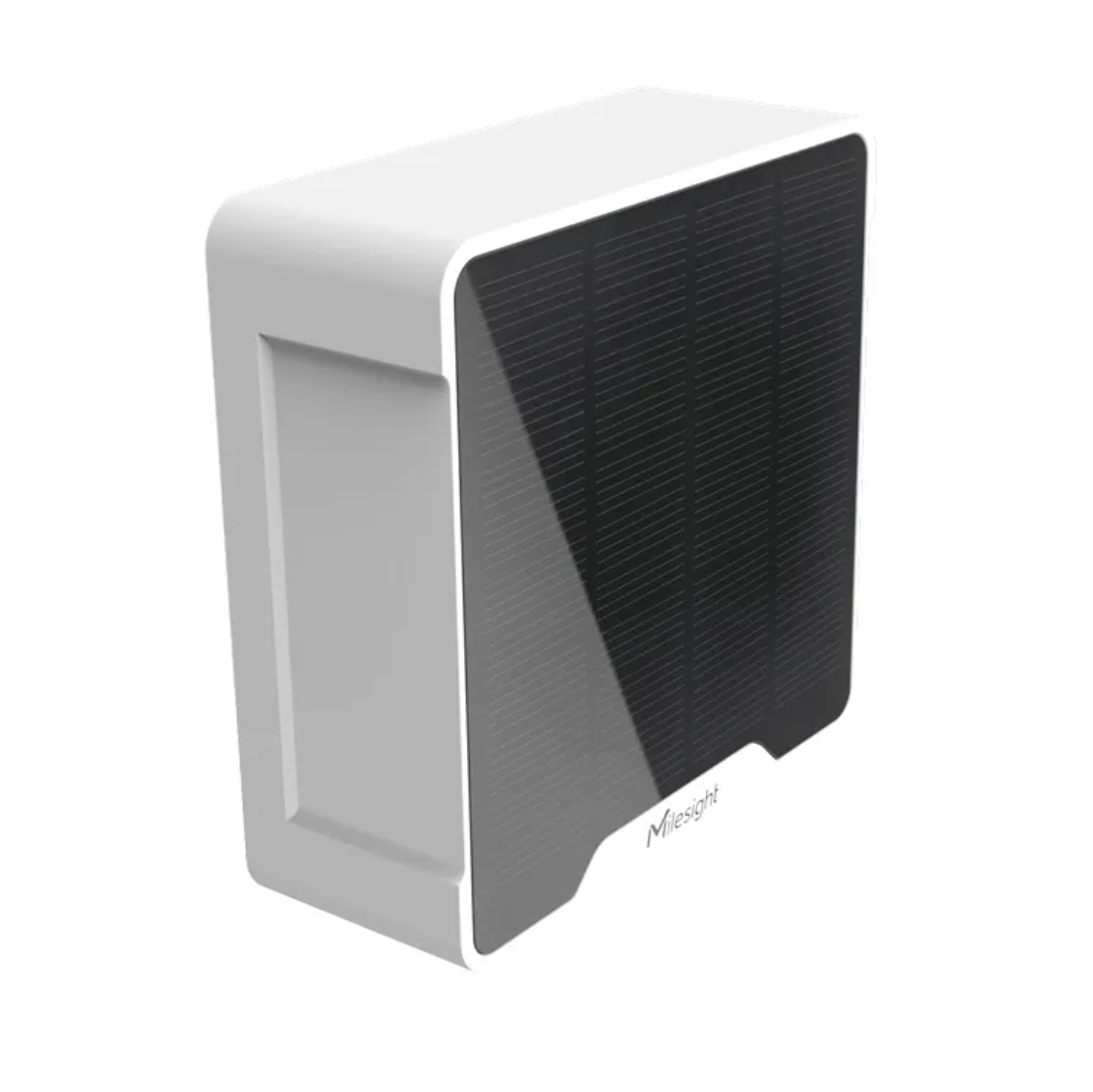

The Milesight UC511 is a rugged, solar-powered LoRaWAN solenoid valve controller designed to remotely manage DC latching valves in harsh outdoor environments in real time. Built for smart agriculture, landscape irrigation, and garden irrigation systems, it delivers reliable long-range data transmission up to 15 km line of sight using the LoRaWAN protocol – ideal for farm, estate, and utility deployments across Africa.
Unlike battery-only devices, the UC511 is powered by an embedded solar panel paired with 2 × 2550 mAh rechargeable ICR18650 batteries – delivering continuous, self-sustaining operation without manual battery replacement. A true fit-and-forget solution for sun-exposed outdoor deployments where long-term operation and zero maintenance are non-negotiable.
A single controller. Complete valve control: The UC511 controls two DC latching solenoid valves simultaneously via a single wall or pole-mounted unit – giving farmers, irrigation managers, and field operators full remote open/close control without multiple devices, complex wiring, or on-site intervention.
- Solenoid Interfaces: 2 × DC 12V latching solenoid ports
- GPIO Interfaces: 2 × digital inputs for flow or valve status monitoring
- Control: Remote via LoRaWAN downlink, D2D (gateway-free), or local via NFC mobile app
Available in two variants:
UC511 (IA) – Internal Antenna: Solar-powered LoRaWAN solenoid valve controller with internal antenna. Controls 2 × DC 12V latching valves, 2 × GPIO inputs for flow/status monitoring. IP68 rated, embedded solar panel + 2 × 2550 mAh rechargeable batteries. Supports Milesight D2D for gateway-free direct device control. Ideal for open-field deployments with good sun exposure and network coverage.
UC511 (EA) – External Antenna: Solar-powered LoRaWAN solenoid valve controller with external SMA antenna connector. Controls 2 × DC 12V latching valves, 2 × GPIO inputs for flow/status monitoring. IP68 rated, embedded solar panel + 2 × 2550 mAh rechargeable batteries. Supports Milesight D2D. Ideal for deployments in areas with challenging signal conditions, dense vegetation, or structural obstructions.
Additionally, the EA version supports DC 5–24V wired power via M12 connector – providing a hardwired power option for permanent installations near infrastructure.
Both variants share identical solenoid control capabilities, IP68 protection, and LoRaWAN connectivity.
Key Features:
- Controls 2 × DC 12V latching solenoid valves locally or remotely
- Available in internal antenna (IA) and external antenna (EA) versions
- Self-sustaining solar power – embedded 6V/1.7W solar panel + 2 × 2550 mAh rechargeable batteries, no manual battery replacement needed
- Supports Milesight D2D – direct device-to-device control without a LoRaWAN gateway, enabling ultra-low latency autonomous irrigation responses
- Supports Class A, B, C, and Class C to B – including always-on Class C for real-time downlink responsiveness
- Long-range LoRaWAN communication up to 15 km line of sight
- IP68 rated enclosure and M12 connectors – fully weatherproof for harsh outdoor environments
- NFC-enabled for easy field configuration via mobile app
- Supports local rules for flexible valve control without network connectivity
- Two GPIO interfaces for flow monitoring or valve status feedback
- Supports multicast for bulk valve control across multiple units simultaneously
- Supports timed working mode switching for easier deployment and maintenance
- FUOTA (Firmware Update Over the Air) supported
- Multi-region frequency support: EU868, US915, AU915, AS923 and more
The UC511 provides real-time valve control intelligence that helps automate irrigation schedules, conserve water, and improve operational efficiency across any field, garden, or utility deployment.
Smart irrigation starts with reliable control – automate what matters most with the Milesight UC511.
Need a gateway too? Pair it with the Milesight UG67 Outdoor LoRaWAN Gateway for a complete long-range irrigation control solution across your entire farm or estate.
Check out the Milesight UC511 LoRaWAN Solenoid Valve Controller User Online Manual.
