The Milesight WTS506 is a rugged, all-in-one LoRaWAN weather station designed to monitor multiple atmospheric conditions in real time. Built for meteorology, smart agriculture, and smart building applications, it delivers reliable long-range data transmission up to 15 km line of sight using the LoRaWAN protocol – ideal for outdoor environmental monitoring across farms, estates, and remote field deployments across Africa.
Unlike battery-only devices, the WTS506 is solar-powered with dual 2550 mAh rechargeable battery backup; delivering continuous, energy-autonomous operation without manual intervention. A true set-and-forget solution, engineered to withstand the most demanding outdoor conditions.
One station. Six critical measurements:
The WTS506 measures six key atmospheric parameters from a single pole-mounted installation – giving operators a complete picture of environmental conditions without multiple devices or complex wiring.
- Temperature Range: -40°C to 85°C | Accuracy: ±0.3°C
- Humidity Range: 0–100% RH | Accuracy: ±3% RH
- Wind Speed Range: 0–60 m/s | Accuracy: ±0.3 m/s or ±3%
- Wind Direction Range: 0°–360° | Accuracy: ±3°
- Barometric Pressure Range: 500–1100 hPa | Accuracy: ±0.5 hPa
- Rainfall Range: 0–1000 mm | Accuracy: ±0.5 mm (<10 mm)

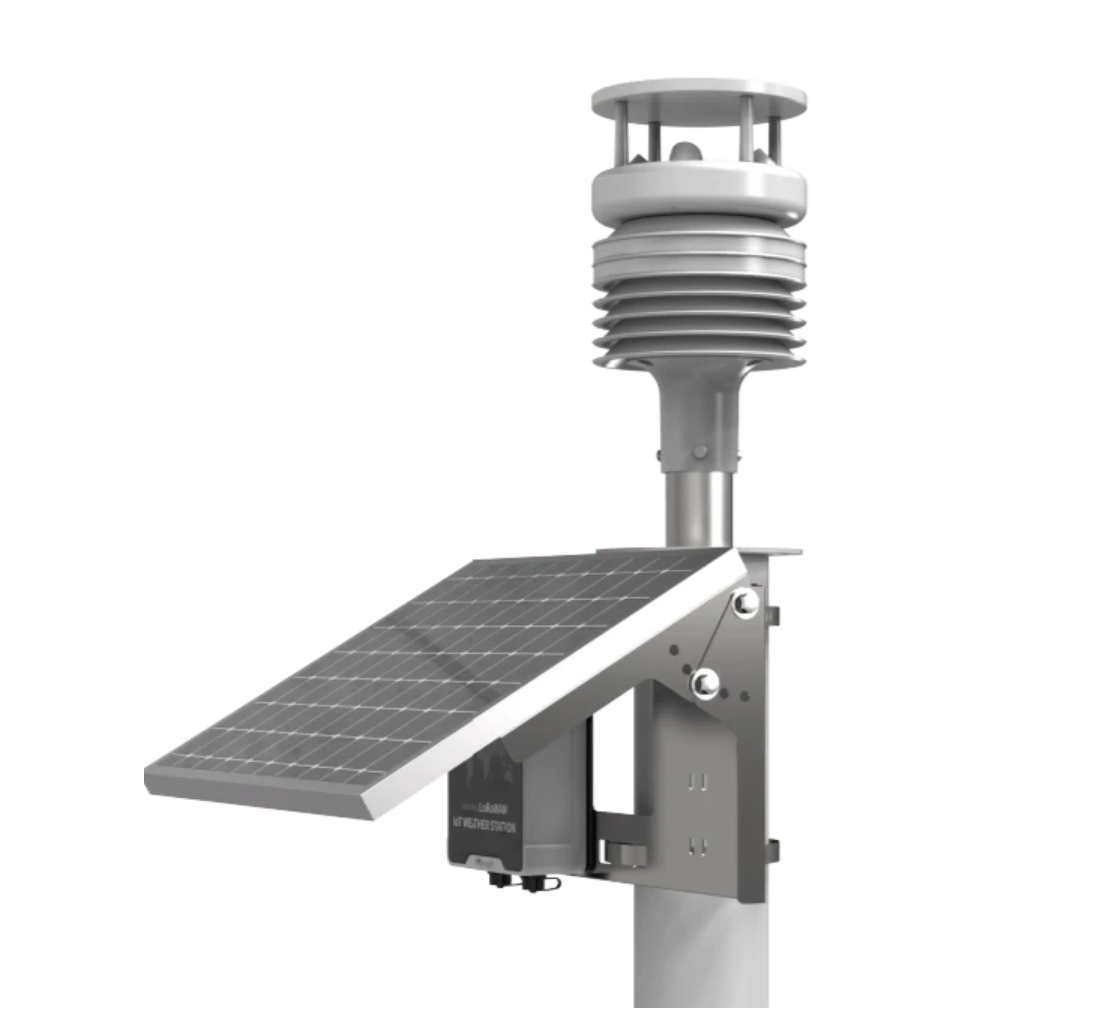

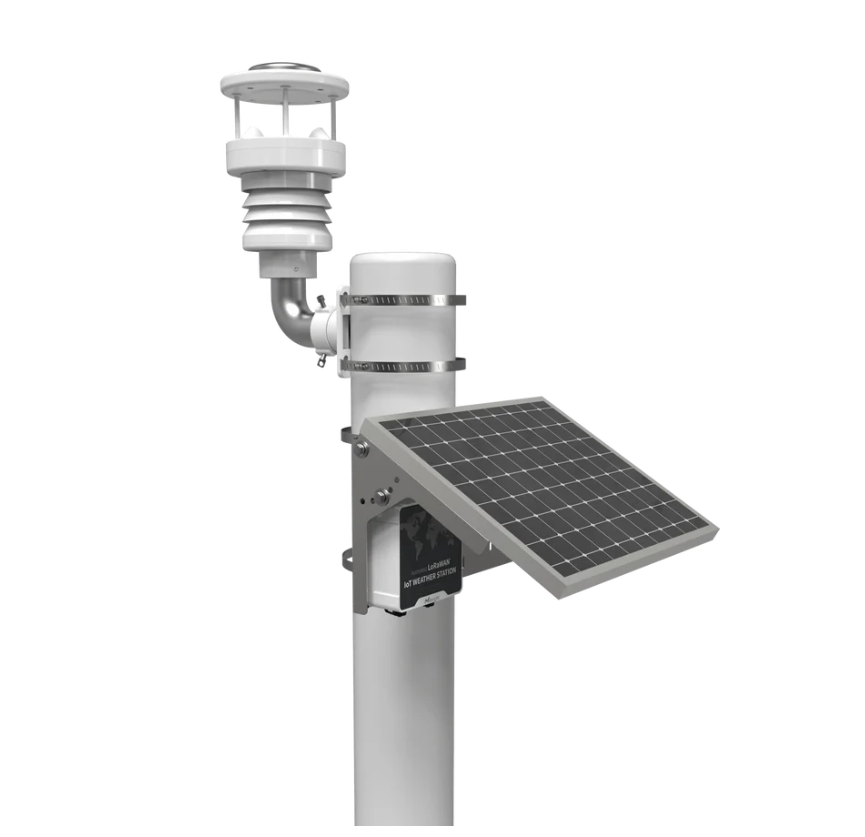

Three-Part System:
The WTS506 consists of three integrated components working together as a complete weather monitoring solution:

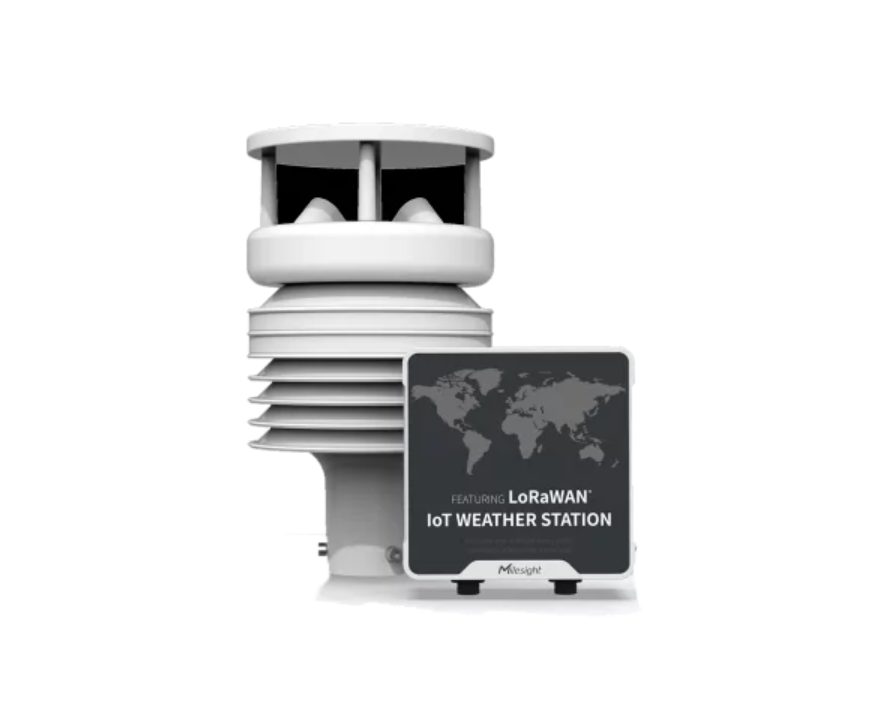

- WTS506 Sensor – The all-in-one ultrasonic weather sensor measuring temperature, humidity, wind speed, wind direction, barometric pressure, and rainfall. IP65 rated with an aluminium alloy enclosure, built to withstand harsh outdoor conditions.
- WTS Hub – The LoRaWAN transceiver that collects data from the WTS506 sensor and transmits it wirelessly up to 15 km line of sight. IP67 rated, NFC-enabled for easy field configuration, and capable of storing up to 19,000 data entries locally with retransmission support.
- Solar Panel – A 15W monocrystalline silicon solar panel providing continuous power to the WTS Hub, with dual rechargeable battery backup to ensure uninterrupted operation during low-light periods.
Key Features:
- Measures temperature, humidity, wind speed, wind direction, barometric pressure, and rainfall simultaneously
- Solar-powered with dual rechargeable battery backup for energy-autonomous operation
- Long-range LoRaWAN communication up to 15 km line of sight
- IP65 weather sensor and IP67 hub – fully weatherproof for harsh outdoor environments
- NFC-enabled for easy field configuration via mobile app
- Stores up to 19,000 data entries locally with retransmission support
- Supports threshold alarms for proactive environmental monitoring
- Compatible with standard LoRaWAN gateways and network servers
- Multi-region frequency support: EU868, US915, AU915, AS923 and more
The WTS506 provides real-time atmospheric intelligence that helps improve operational decision-making, crop management, and environmental awareness across any site or deployment scale.
Smart environmental monitoring starts with accurate data – stay ahead of conditions with the Milesight WTS506 IoT Weather Station.
Need a gateway too? Pair it with the Milesight UG67 Outdoor LoRaWAN Gateway for a complete long-range weather monitoring solution across your entire site.
Check out the Milesight WTS506 IoT Weather Station User Online Manual.
